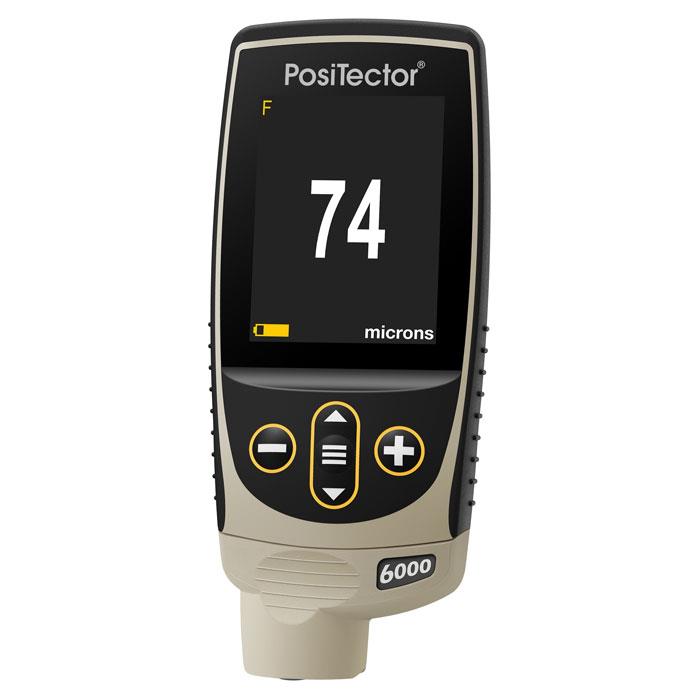

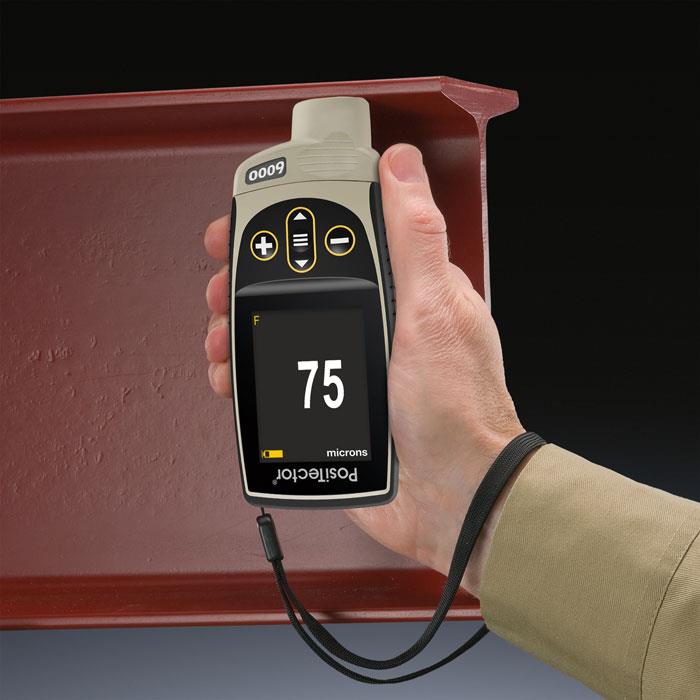

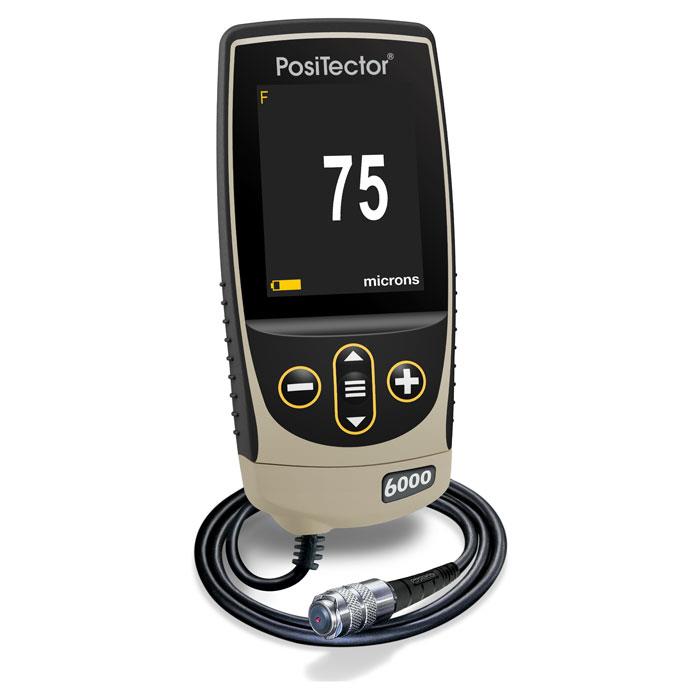

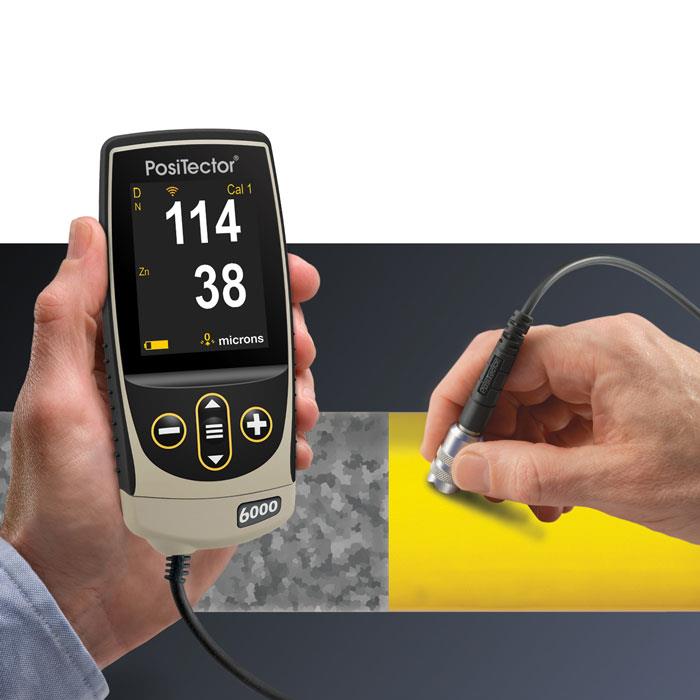

PosiTector® 6000 Paint Depth Gauge
Standard Coating Thickness Gages for ALL Metal Substrates, the robust, completely electronic PosiTector 6000 Paint Thickness Gauge measures paint thickness on ferrous and non-ferrous metals fast and precisely using eddy current and magnetic principles.
Ready to measure: For the majority of applications, no calibration modification is needed with a new Larger 2.8" colour touchscreen that is resistant to damage and has a revamped keypad for fast menu navigation NEW IP65-rated enclosure that is water-resistant, dust-proof, and weatherproof. Use a durable ruby probe tip for accurate calibration over time. PosiTector interchangeable platform: Connect any PosiTector probe to a single gauge body. PosiSoft PC, Mac, and Smartphone software is accessible by USB, WiFi, and Bluetooth. Included is a Certificate of Calibration (long form) demonstrating traceability to NIST or PTB.
Technical:
- Standard Body

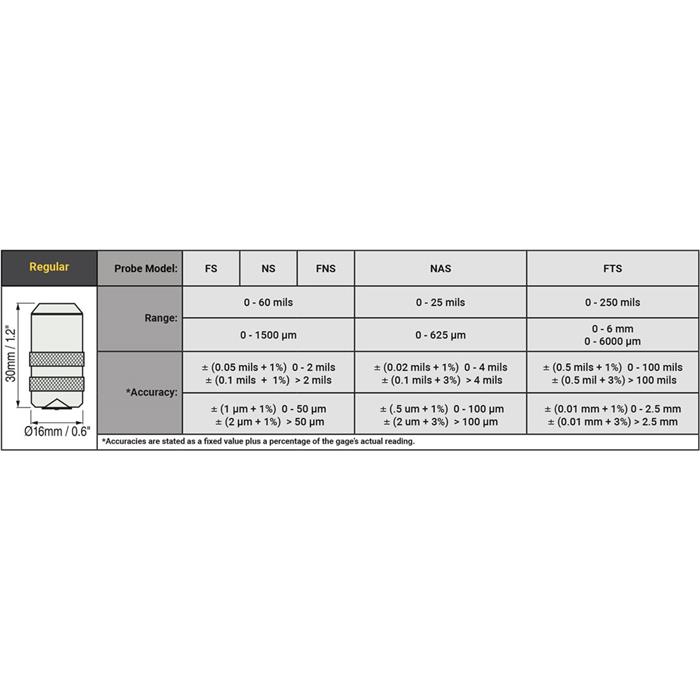

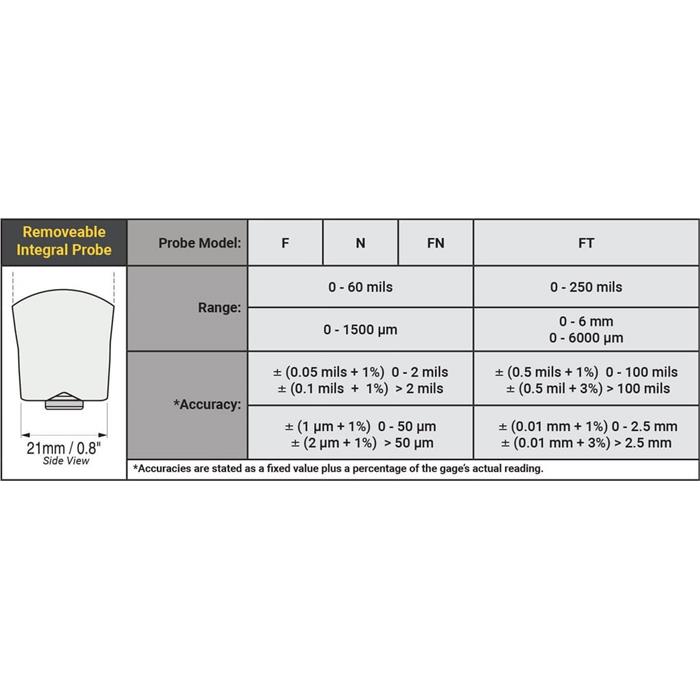

- Integral or Regular Probe (select from dropdown)
- Use on Ferrous & Non-Ferrous metals
- Storage of 1,000 readings.
Features:
- 60+ readings per minute; 90+ readings per minute in enhanced FAST mode.
- Quick inspection with no adjustments required for most applications.
- 2.8" impact-resistant color touchscreen with a redesigned keypad for easy navigation.
- On-gage help feature explains menu items at the touch of a button.
- Weatherproof, dustproof, and water-resistant with an IP65-rated enclosure.
- Ergonomic design with a durable rubberized grip.
- Wear-resistant probe tip and shock-absorbing rubber holster.
- Certificate of Calibration included, showing traceability to NIST or PTB.
- Built-in temperature compensation ensures measurement accuracy.
- Hi-RES mode for increased resolution in precision applications.
- Conforms to national and international standards (ISO and ASTM).
- Multiple calibration adjustment options and selectable display languages.
- Auto-rotating display with Flip Lock and extended cables for underwater or remote measuring.

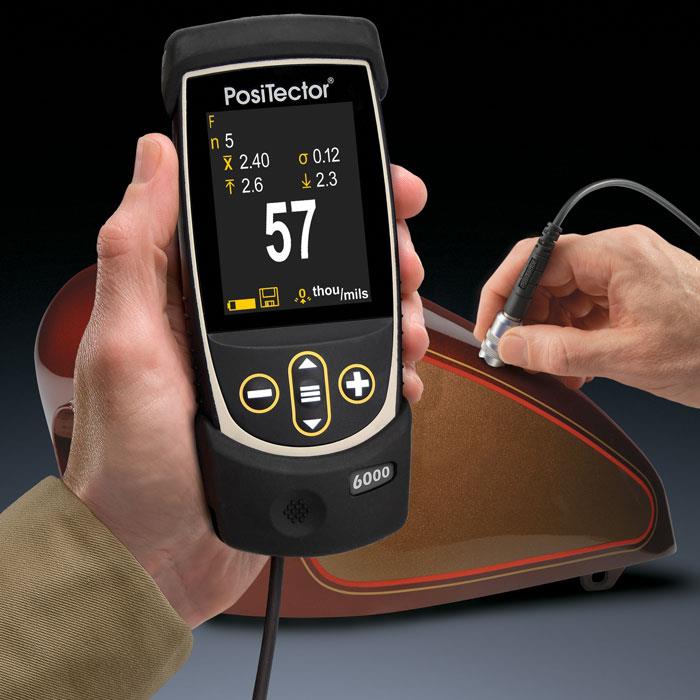

- Statistics mode displays/updates average, standard deviation, min/max, and the number of readings during measurement.
- Screen Capture feature saves 100 screen images for record-keeping and review.
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits.
- Instant-on feature for quick startup, and up to 30% longer battery life.
- USB port for PC connection and continuous power supply, with software updates available via the web.
- Every stored measurement is date and time stamped.
This comprehensive tool provides a user-friendly, durable, accurate, versatile, and powerful solution for various measuring needs.
Browse here for probes and body and probe kits.
Size: Standard Body 6000 Combination Integral Probe or Regulars Probe
*item is excluded from any discounts or promotions.
