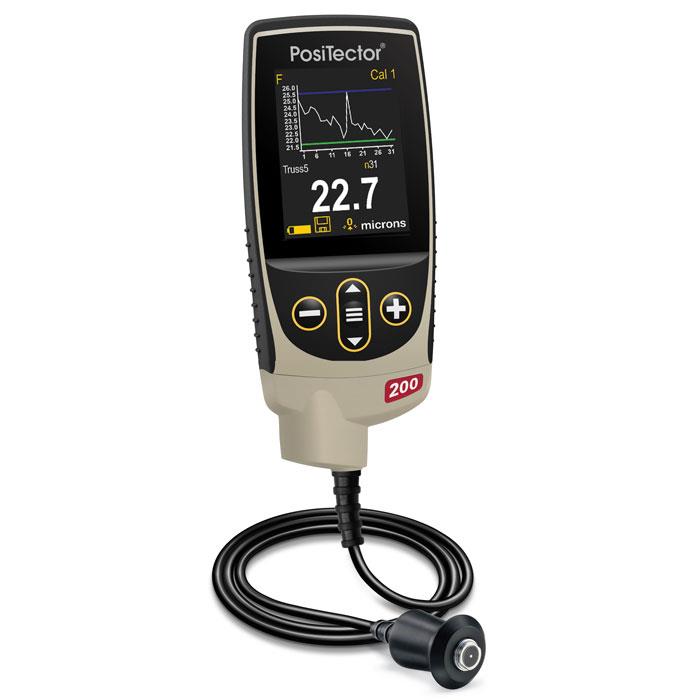

Carbon Fibre Paint Depth Gauge
The Defelsko PosiTector Advance Body 200B paint thickness reader can give you accurate thicknesses for primer, colour, and lacquer on plastics and even the thickness of just the lacquer on carbon fibre.
Knowing the thickness of paint on some of the most expensive cars in the world before you start polishing. The history of car paint can be told quickly from measurements of its thickness, with higher or lower areas telling you if a previous work has been done.

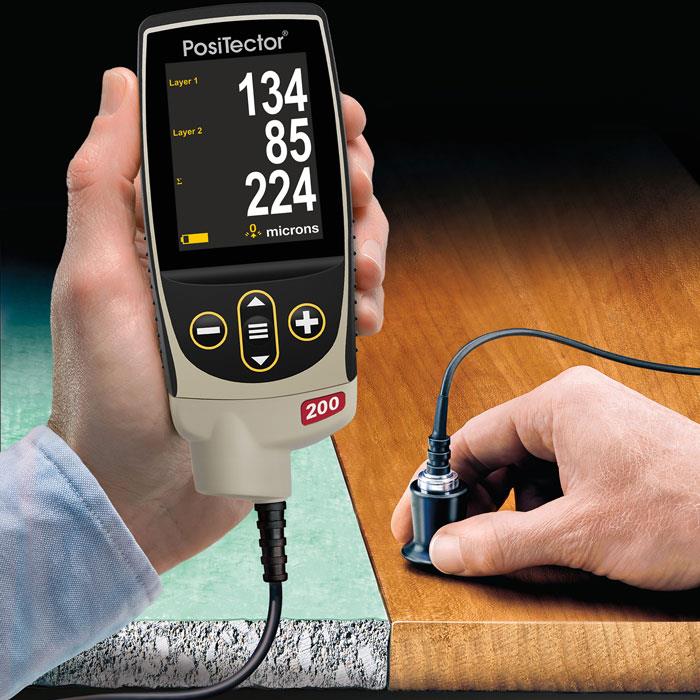

Using dependable ultrasonic technology to measure a wide range of applications non-destructively. Assess the layer thickness on various materials such as plastic, concrete, and wood. More complex models have visuals that span up to three levels.
Technical:
- Polymer coating on wood, plastic, carbon fibre etc
- 13 to 1,000 μm (0.5 to 40 mils)
- ± (2 μm + 3% of reading)
- ± (0.1 mils + 3% of reading)
- Certified Thickness standard STDA3
- Advance Body
- Regular Probe
- Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes Normal / Statistics / Limited Count Average
- WiFi
- Bluetooth 4.0 Technology
- PosiTector App
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Connect a Bluetooth barcode scanner
Features:
- 60+ readings per minute; 90+ readings per minute in enhanced FAST mode.
- Quick inspection with no adjustments required for most applications.
- 2.8" impact-resistant colour touchscreen with a redesigned keypad for easy navigation.
- On-gage help feature explains menu items at the touch of a button.
- Weatherproof, dustproof, and water-resistant with an IP65-rated enclosure.
- Ergonomic design with a durable rubberized grip.
- Wear-resistant probe tip and shock-absorbing rubber holster.
- Certificate of Calibration included, showing traceability to NIST or PTB.
- Built-in temperature compensation ensures measurement accuracy.
- Hi-RES mode for increased resolution in precision applications.
- Conforms to national and international standards (ISO and ASTM).
- Multiple calibration adjustment options and selectable display languages.
- Auto-rotating display with Flip Lock and extended cables for underwater or remote measuring.
- Statistics mode displays/updates average, standard deviation, min/max, and the number of readings during measurement.
- Screen Capture feature saves 100 screen images for record-keeping and review.
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits.
- Instant-on feature for quick startup, and up to 30% longer battery life.
- USB port for PC connection and continuous power supply, with software updates available via the web.
- Every stored measurement is date and time stamped.
This comprehensive tool provides a user-friendly, durable, accurate, versatile, and powerful solution for various measuring needs.
Browse here for probes and body and probe kits.
Size: Advance Body 200B Regulars Probe
